| SPECIFICATIONS |
| |
| Camera |
| Model No. |
APL200 |
| Product Name |
Motion Activated Infra-RED illuminator |
| Sensor Mode |
Motion Sensor & Light Sensor |
| Motion Sensor Angle |
About 120° |
| Motion Sensor Range |
About 6 meters |
| Delay Time |
About 10 seconds |
| IR Wavelength |
850 nm |
| LED Power |
2.5 W (1.25 W *2) |

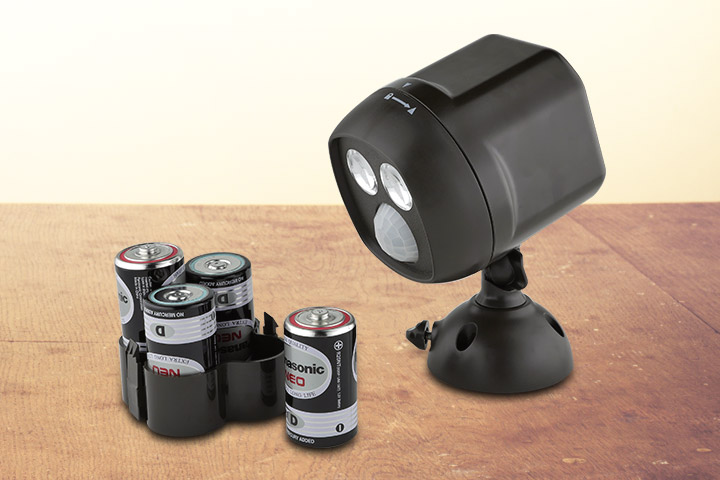

| Power Supply |
| 4 X D Batteries |
(6V, approx. 19,080 triggers) |
| Battery Life |
About 1 year (40 triggers per day) |
| Operating Temperature |
-5°C~40°C |
| Operating Humidity |
5%~93% |

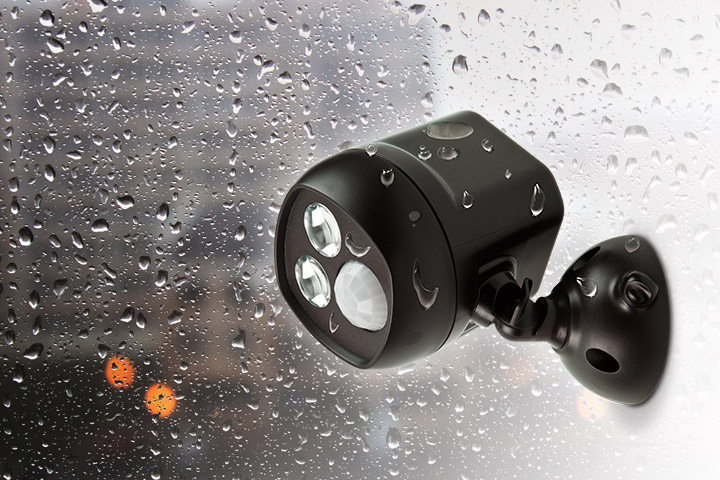

| Waterproof |
IPX4 |
| Color |
Dark Brown |
| Product Size |
L100 X W110 X H165 mm |
| Product Weight |
303 g |
NOTE: Batteries last 14 months usage under time lapse mode. (time interval setting: 5 minutes.)
Brinno ships the exact product shown in the picture, however, colors and photos shown may vary from actual product colors due to computer monitor display settings. Therefore what you see here may be different then the actual product shipped. |
| APL200 Package Contents |
 Motion Activated Infrared Illuminator (APL200) *1 |
| Mounting Screw *2 |
|
|
| |
