STRONG, DURABLE and FLEXIBLE, the EZ to use and adjustable clamp opens from a minimum of 0.04 in (1mm) to a max of 3.5 in (90mm). It can grasp and hold on to any available object tightly and steadily at construction sites.
The camera arm has a 360 degree rotating tripod (¼“) ball joint with 90° tilt for easily positioning the direction of the camera.
Flexible Mounting Way
|
| |

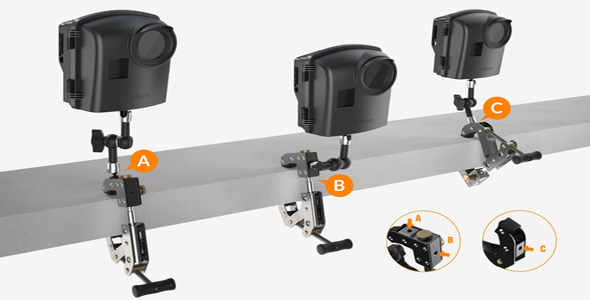

| Camera Mounting Positions |
 |
In the Box |
Clamp Mount Kit |
 |
|
Time Lapse Camera |
 |
|
Construction Power |
 |
|
Worker friendly, Easy to set up!
Clamp Mount Kit |
| Model NO. |
ACC1000 |
| Contents |
Camera Clamp; magic Arm |
| Camera Mount Screw |
¼” |
| Clamping Range |
Tube: Ø 0.4- 3.5 in (10 - 90 mm)
Flat surface: 0.04- 3.5 in (1 -90 mm) |
| Magic Arm Load Capacity |
6.6 lb (3 KG) |
| Clamp Load Capacity |
110 lb (50 KG) (without extension pole) |
| Size (LxWxH) |
Folded: 8.2x 3.7x 1.5 in (209x 94x 39 mm)
Extended: 6.9x 7.1x 2.4 in (176x 180x 60 mm) |
| Weight |
26.5 oz (750 g) (included magic arm) |
| Materials |
Clamp: Stainless, aluminum
Magic Arm: Stainless, metal, aluminum |
| 9,180 |
64 days |
| 3,700 |
78 days |
| 1,800 |
| 460 |
| 78 |
|
| |
| Time Lapse Camera |
| Model NO. |
TLC 2000 |
| Model |
TLC2000 |
| Resolution |
Full HD (1080P) |
| Aperture |
F 2.0 |
| Field of View |
118°
|
| Capture Mode |
Time Lapse, Step Video, Photo
|
| Storage |
microSD/ microSDHC/ microSDXC
(up to 128 GB, recommend a minimum of Class 10)*1 |
| Power Source |
2 AA Batteries
DC IN 5V 1A (USB-C connector)
|
| Battery Life |
Up to 18 hours at 3 sec interval
Up to 25 days at 5 min interval |
| LCD Screen |
2" TFT LCD |
| Splash-proof |
IPX4 |
| Operation Temperature |
32 °F ~ 113 °F (0 °C ~ 45 °C |
| Size |
2.4x 2.8x 1.7 in (60x 70.6x 42.4 mm) |
| Weight |
3.0 oz(87.5 g) (without battery) |
|
| |
| Construction Power Housing
|
| Model NO. |
ATH 2000 |
| Model No |
ATH2000
|
| IP-Rating |
IPX5 (weather resistant) |
| Compatible Cameras |
TLC200, TLC200Pro, TLC120, TLC130, TLC2000 |

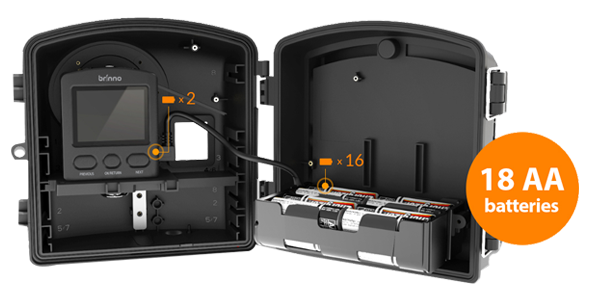

| Battery Slot |
Room for up to 16 add'l AA batteries
Micro USB connecter (output 5V 2A) |
| Exchangeable Lens Covers |
Kit lens cover
Extension lens cover (for Brinno BCS lens) |
| Size |
6.6 x 6.1 x 4.5 inch (167x156x115.5 mm) |
| Weight |
14 oz (393 g) |
| In the Box |
Construction power housing; Camera mounting adapter; Battery slot; Extension lens cover; Desiccant; Screwdriver; USB-C Adapter; Strap*2 |
|
|
|
|
|
|
| |
| SPECIFICATIONS |
BCC2000 Battery Life Chart |
| The BCC2000 camera provides DAY, TWILIGHT, and NIGHT three capture scene settings, please click below tabs to check the related battery life. |
| DAY |
| Time Interval |
Est. total battery life (days) |
| ASAP |
1.0 |
| 1 sec |
0.8
|
| 2 sec |
4.1 |
| 3sec |
5.7 |
| 5 sec |
8.8 |
| 10 sec |
12.3 |
| 20 sec |
45.1 |
| 30 sec |
61.5 |
| 1min |
103.3 |
| 5min |
270.6 |
| 10min |
328 |
| 1hr |
377.2 |
| 4hr |
377.2 |
|
| TWILGHT |
| Time Interval |
Est. total battery life (days) |
| 3 sec |
7.3 |
| 5 sec |
9.9
|
| 10 sec |
13.3 |
| 20 sec |
48.4 |
| 30 sec |
65.6 |
| 1 min |
123 |
| 5 min |
278.8 |
| 10 min |
337.8 |
| 30 min |
369 |
| 1 hr |
369 |
| 4 hr |
385.4 |
| 24 hr |
385.4 |
|
| NIGHT |
| Time Interval |
Est. total battery life (days) |
| 10 sec |
20.5 |
| 20 sec |
48.4
|
| 30 sec |
73.8 |
| 1 min |
131.2 |
| 5 min |
282.9 |
| 10 min |
344.4 |
| 1 hr |
369 |
| 4 hr |
369 |
| 24 hr |
369 |
|
|
| |
